Improved flute

.1010.

Installation Guide

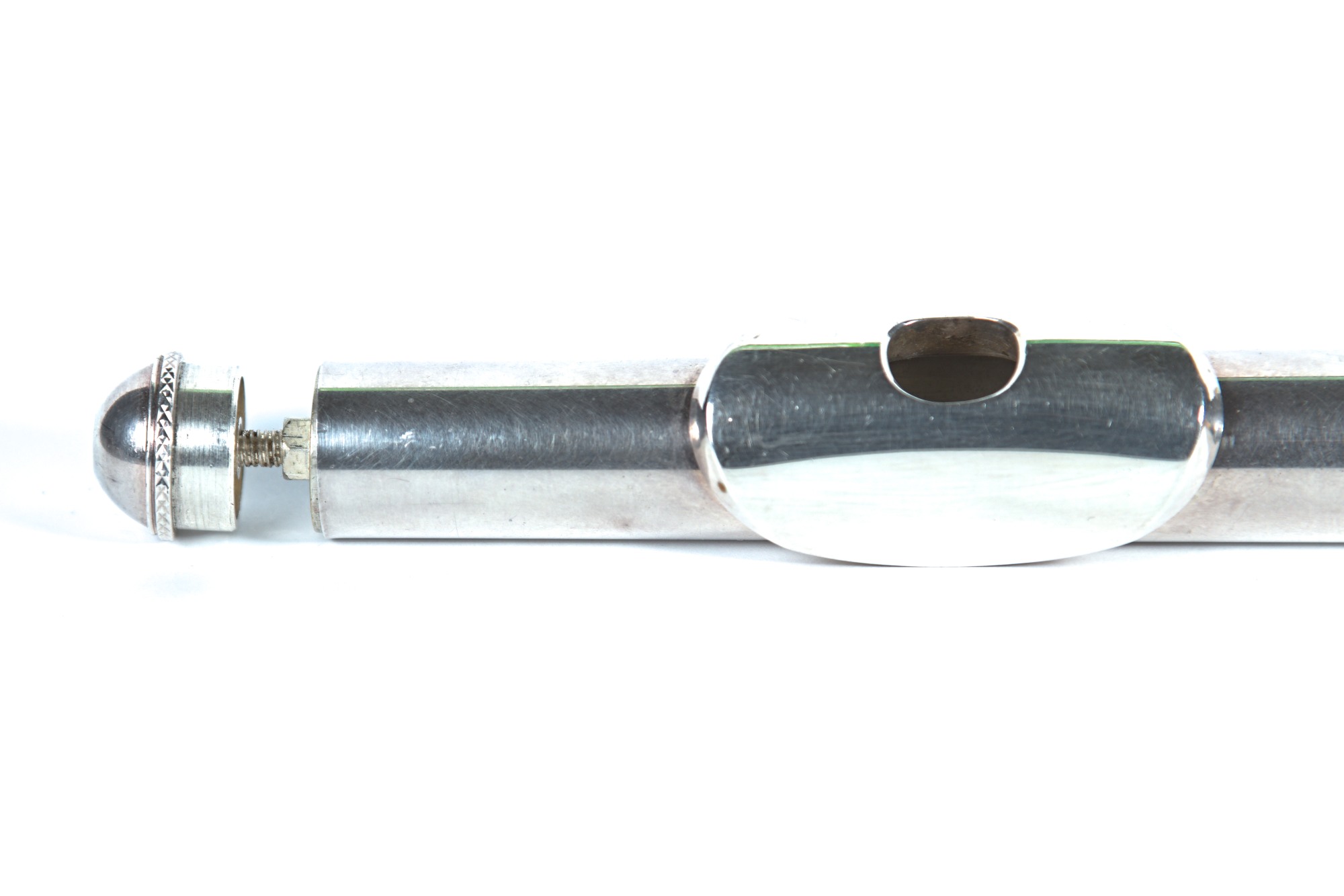

1. Unscrew the top of the flute crown plug.

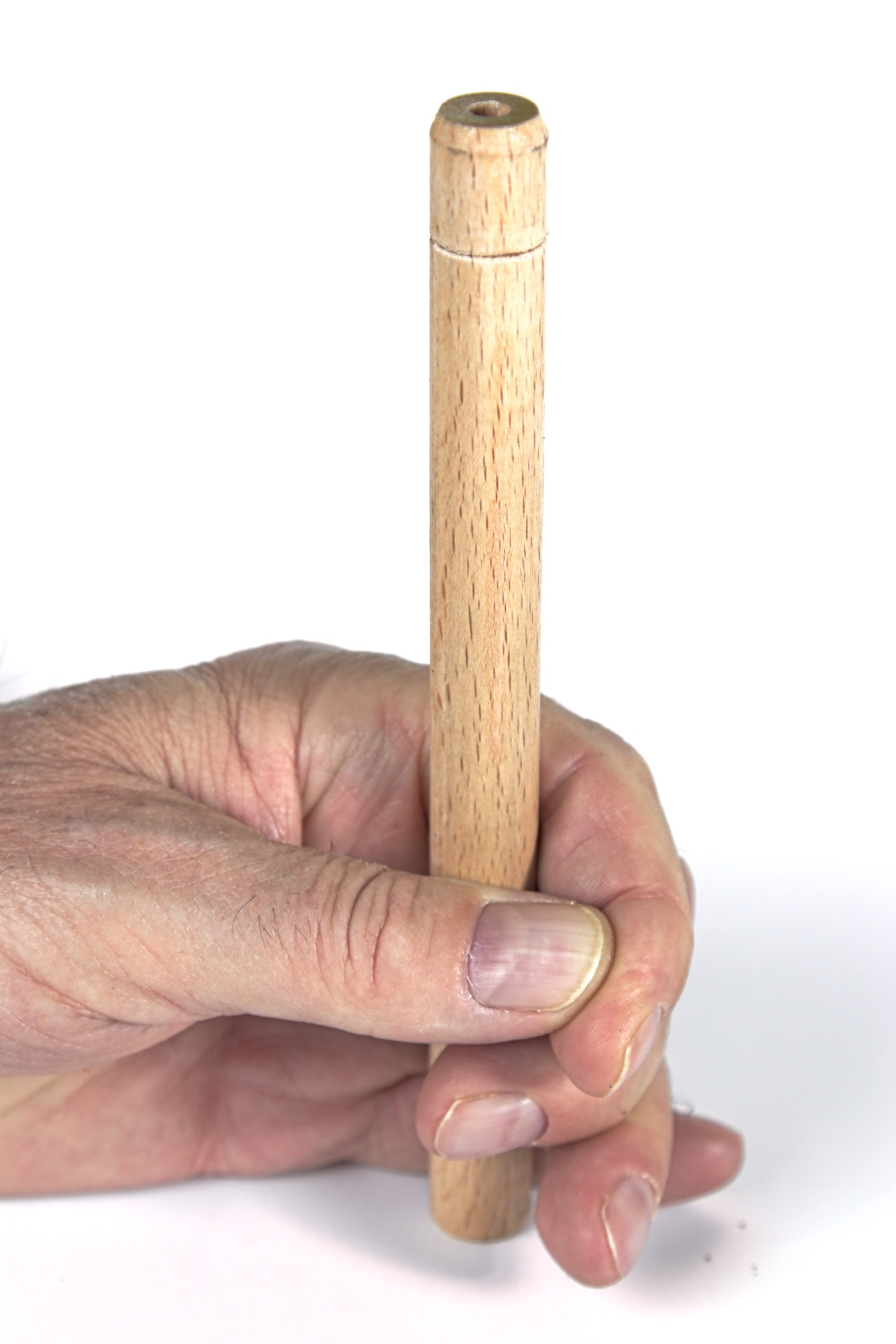

2. Adjust the mounting tree to a very stable point.

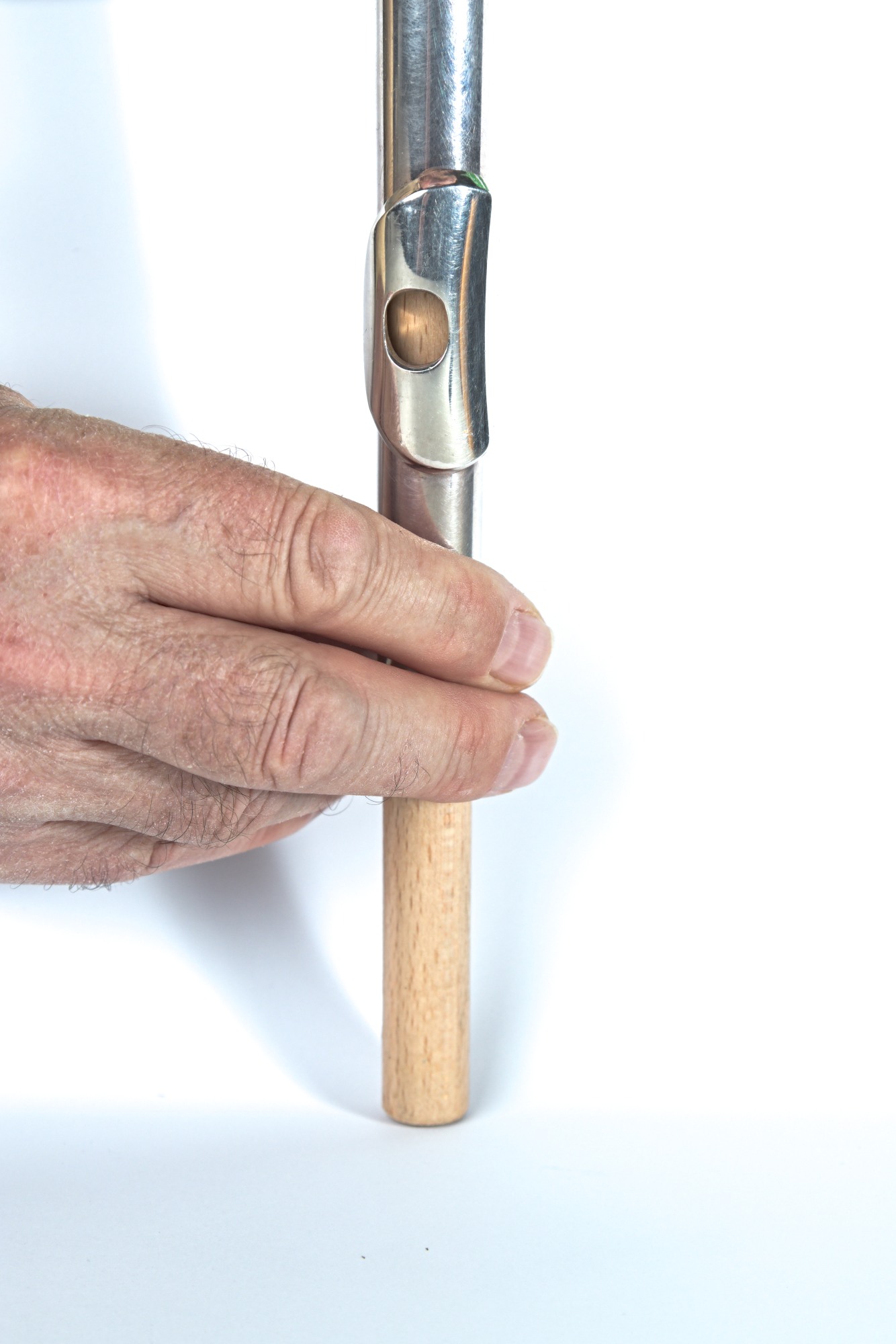

3. Turn the flute head down and insert the threaded shaft of the crown into the hole in the mounting tree.

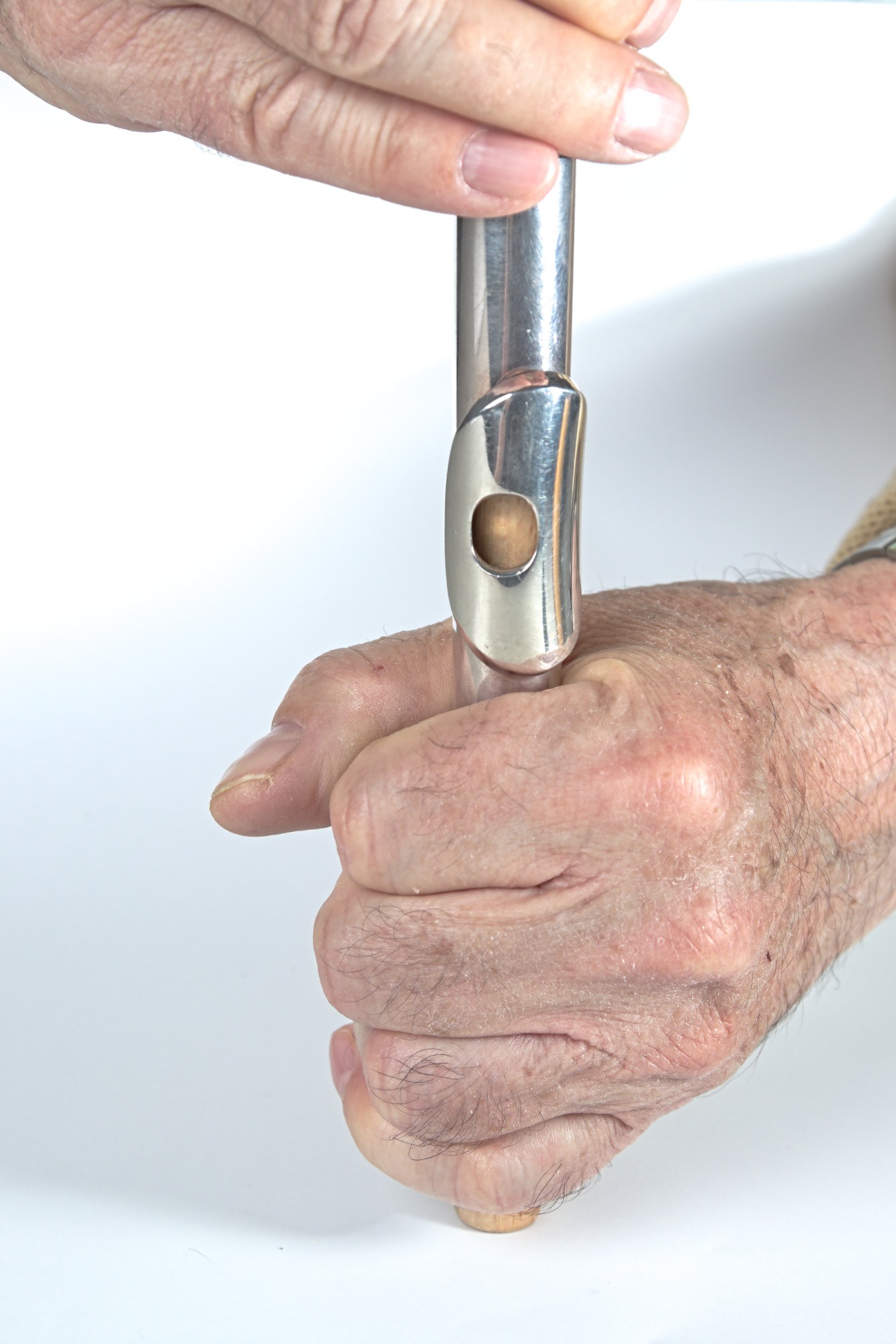

4. The flute head should be held on both sides with both hands and pressed down firmly. Spare the mouth, just hold the tube! This allows you to extend the factory tuning plug. Take care of your physical integrity!

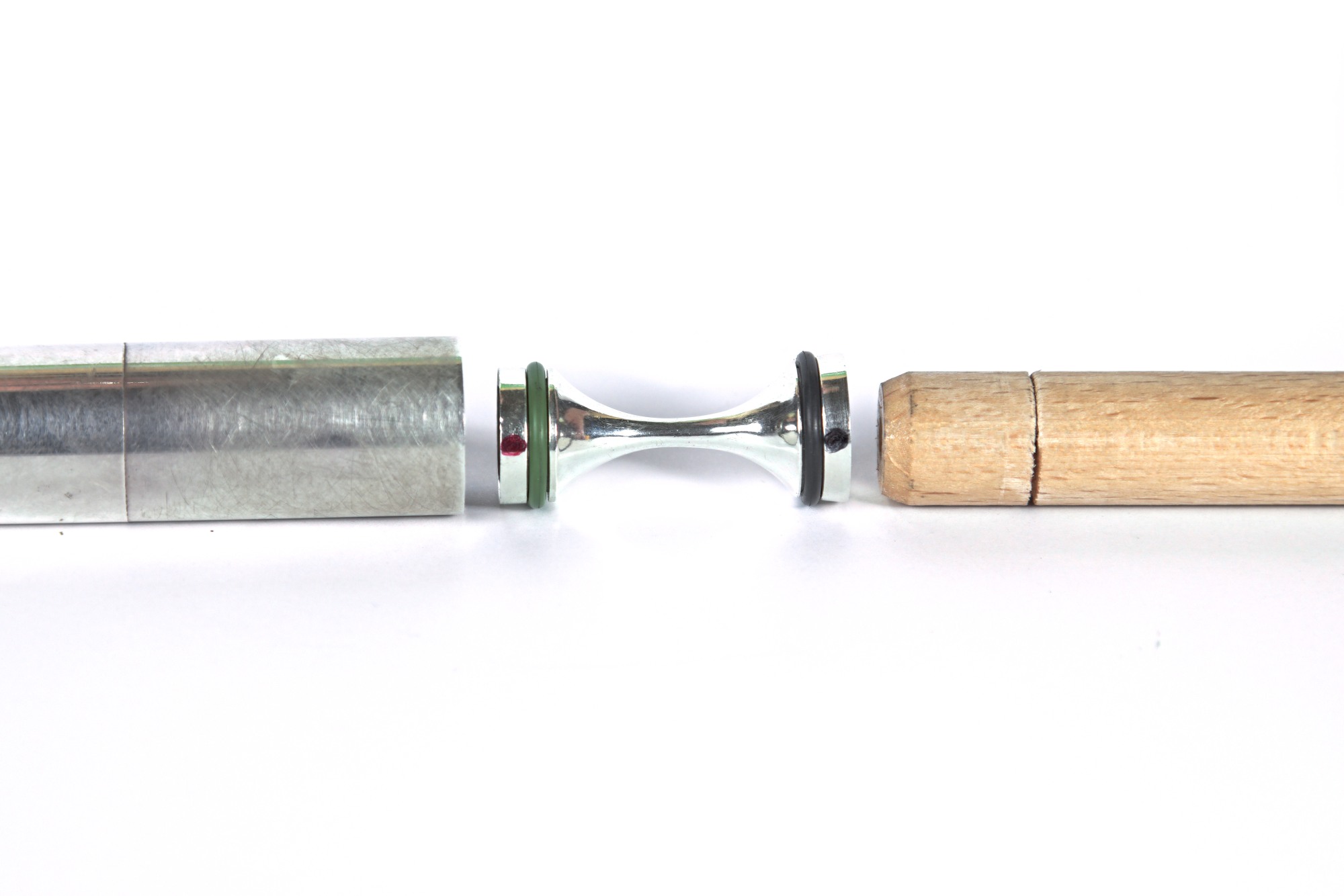

5. Insert the tuning plug into the flute head. Red sign on the left, black sign on the right. That's the way it goes!

6. Push in the tuning plug until the red line on the mounting tree reaches the center of the air inlet..

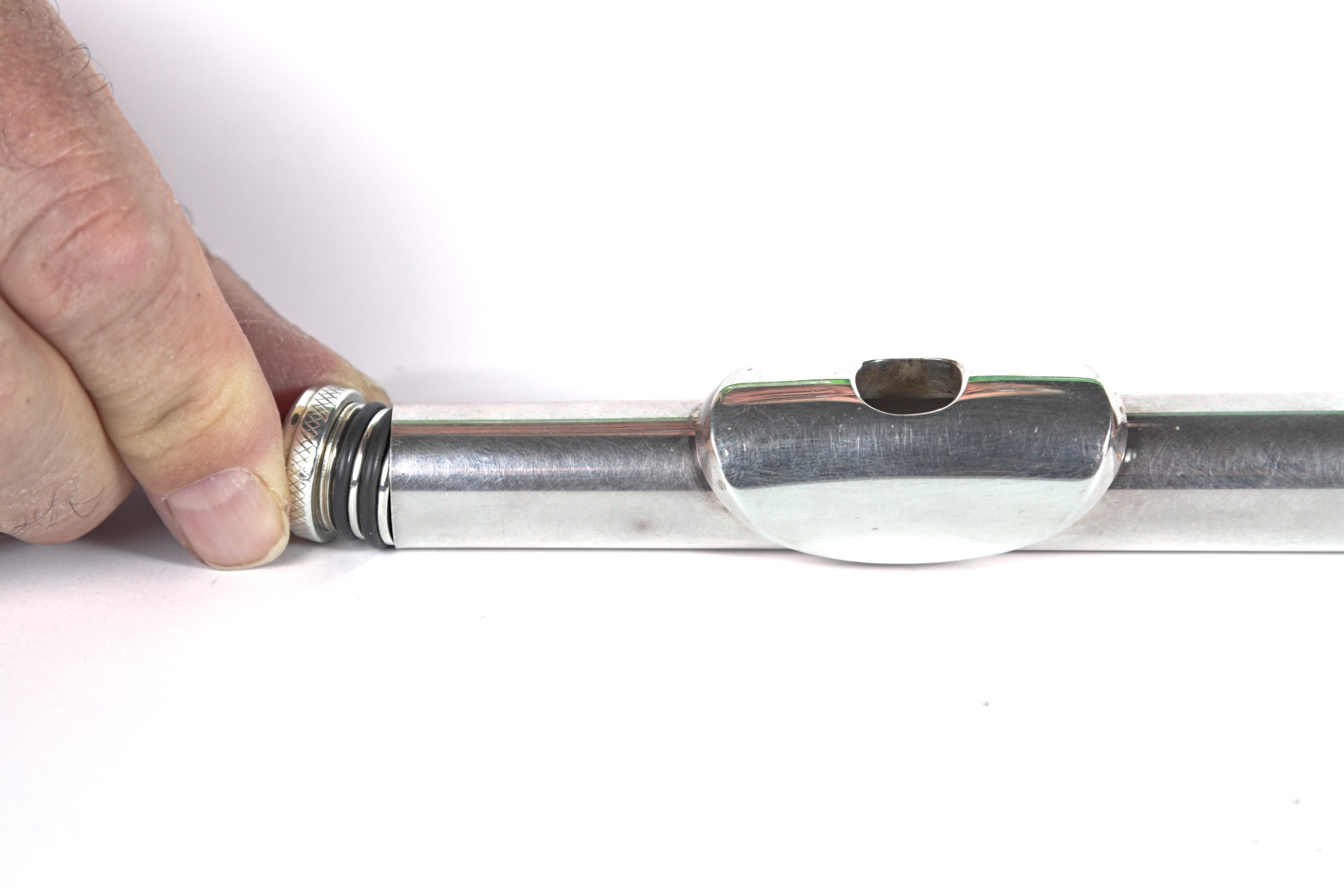

7. Insert the crown plug into the end of the flute head. We recommend that you turn the crown plug slightly to the side and press the black rubber ring slightly. The corona plug should be firmly inserted into the flute head.

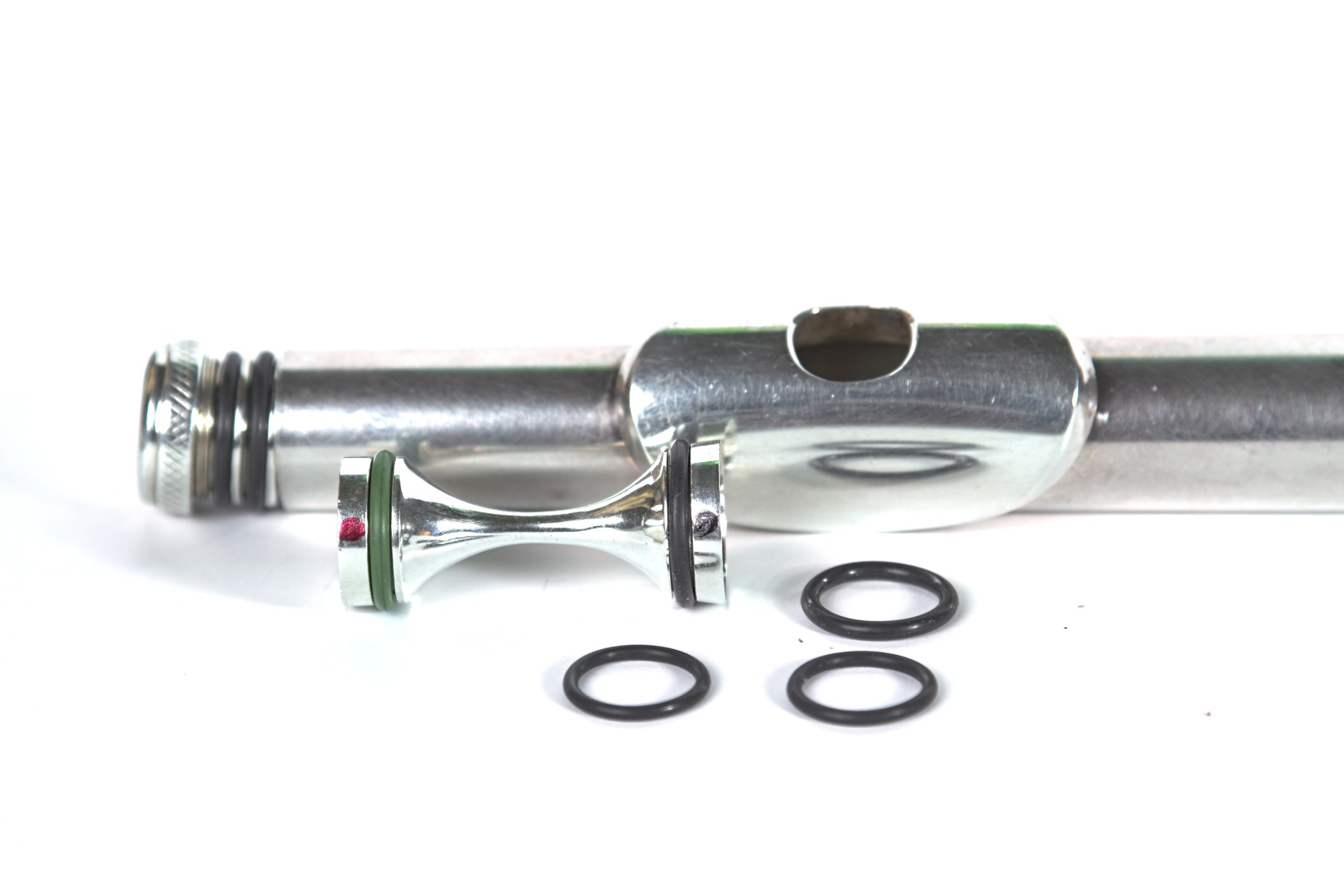

8. The package will include black spare rubber rings. If one of the rubber rings is too large to fit, it should be replaced with a thinner rubber ring.

We send a piece of thin Teflon tape wrapped in the assembly tree. If any of the rubber rings are slightly loose, then this Teflon tape must be placed under the rubber ring to stand tight! Practice for two hours to experience the potential of the new tuner plug.
